Application Description

A powerful OBD2 engine diagnostics tool compatible with Wi-Fi/Bluetooth ELM327 adapters

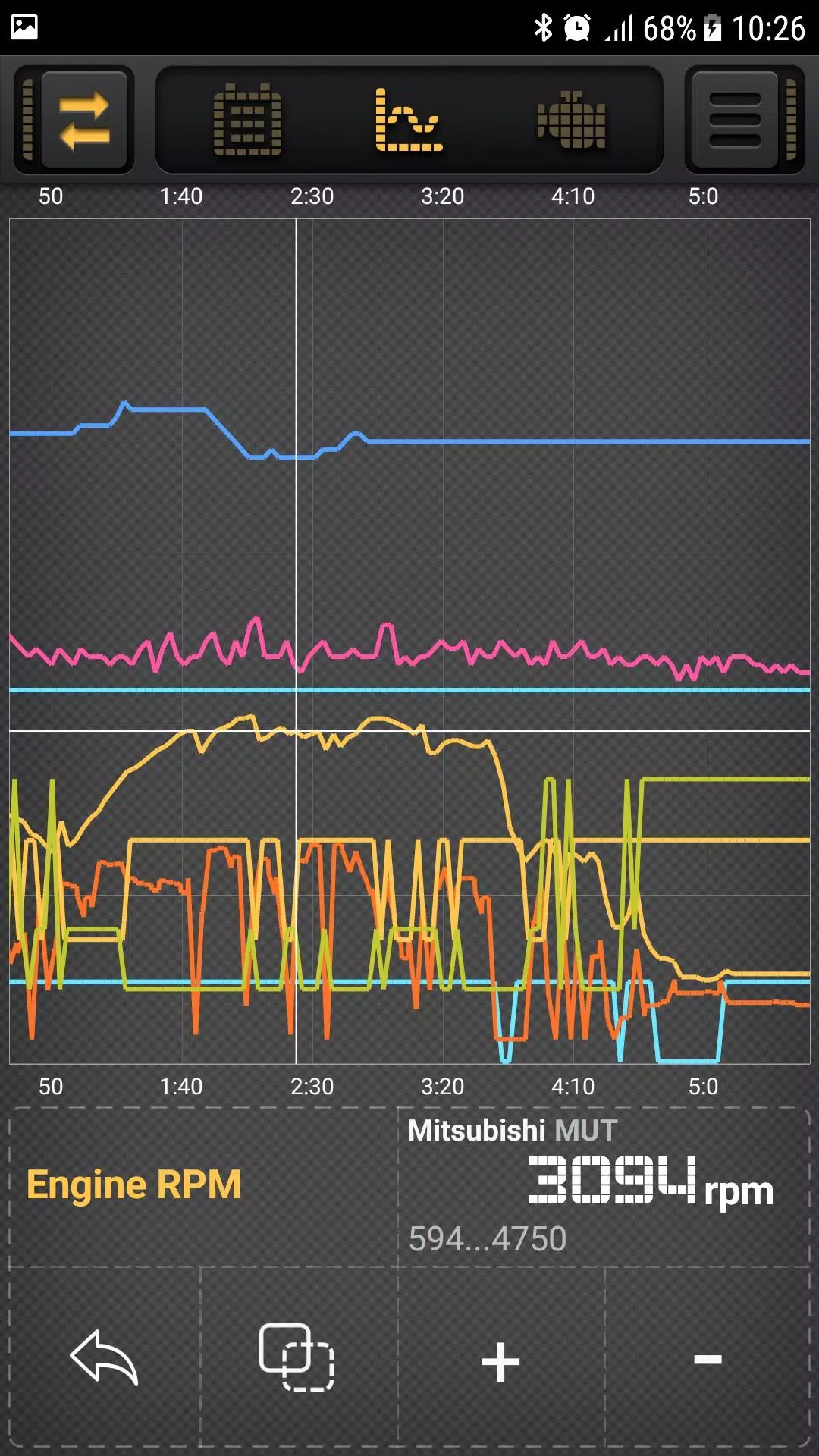

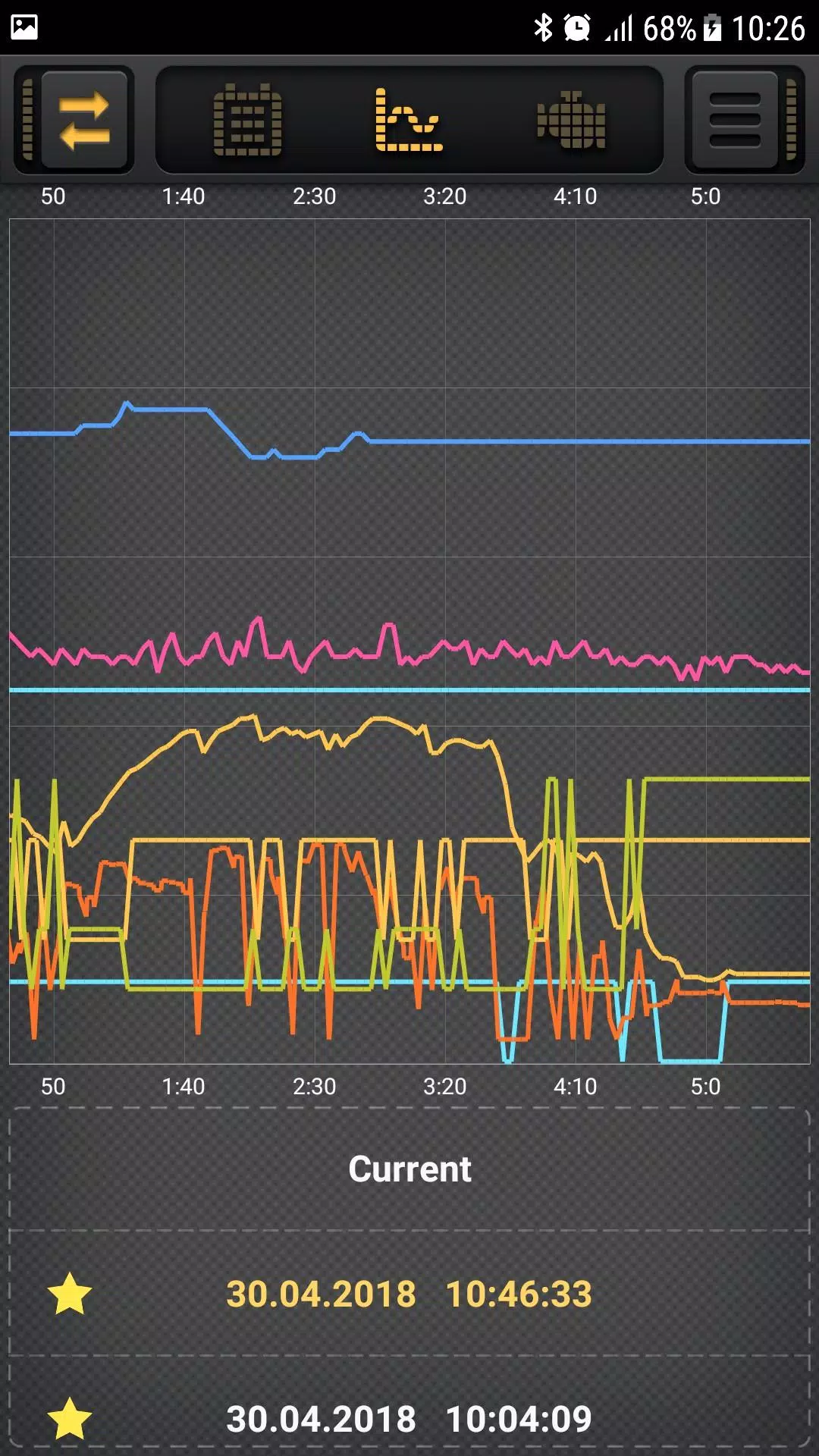

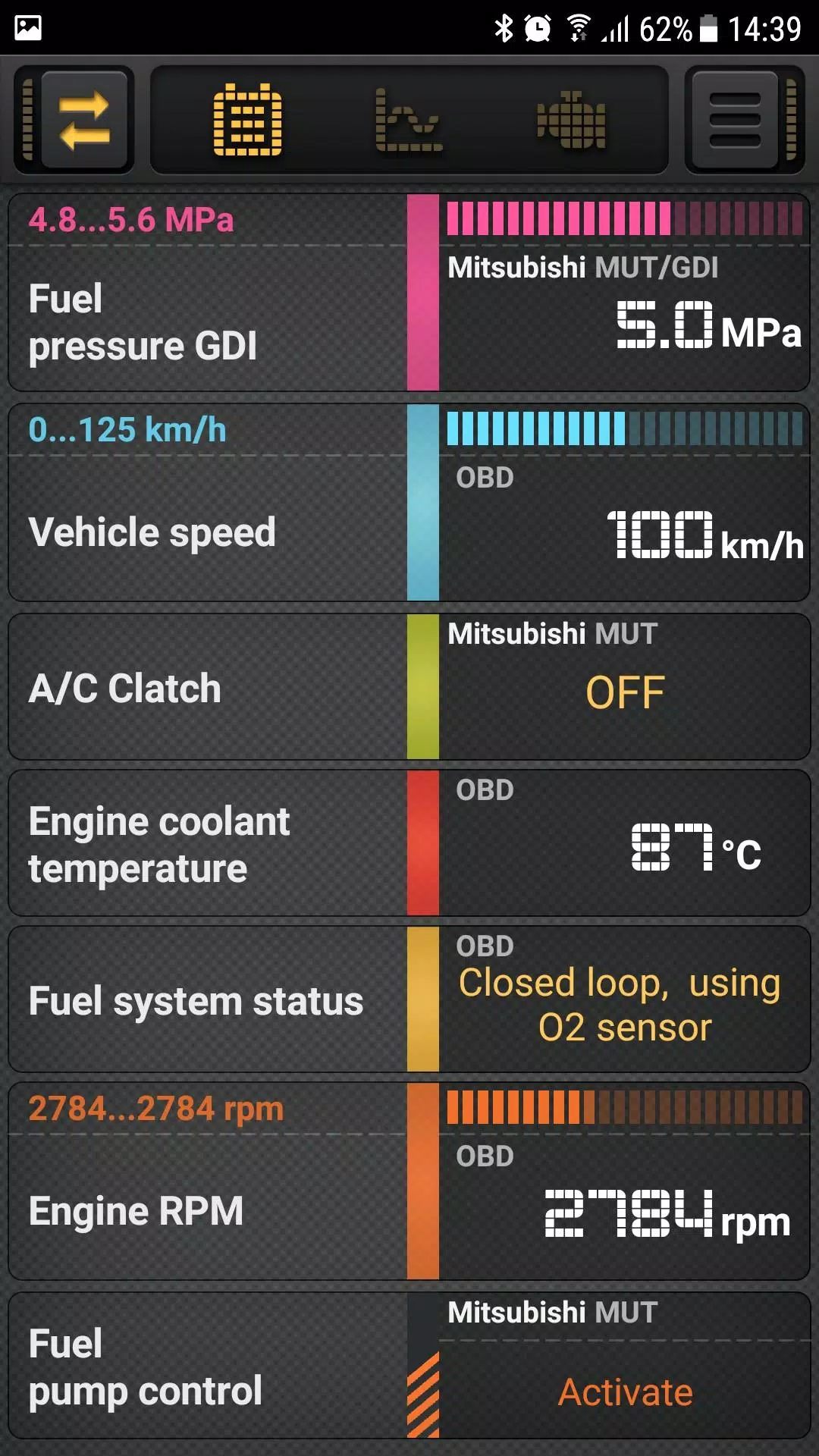

This automotive diagnostic app enables real-time data visualization from your vehicle's electronic systems via ELM327 OBDII adapters. It displays dynamic graphs, logs diagnostic sessions, reads/resets DTC trouble codes, and monitors engine performance.

Customize minimum/maximum thresholds for each sensor/PID to receive instant alerts when values exceed preset limits.

Works seamlessly with both Bluetooth and Wi-Fi versions of ELM327 OBD adapters.

For optimal performance, we recommend using adapter versions V1.5 to V2.1 – newer versions may exhibit compatibility issues.

Important Note:

ELM327 chips are only compatible with OBD2-equipped vehicles:

US models manufactured after 1996,

European gasoline vehicles after 2001 (diesel after 2003),

Japanese models manufactured around 2000 onward.

Beyond standard OBDII protocols, specialized parameters are available for multiple

automotive brands including:

BMW - (DIESEL, E91+AT)

BYD - (MT20U, ABS)

Chery - (MT20U, MT20U2, ActecoME797)

Chrysler/Dodge - (DIESEL, AT)

Citroen - (C4, C5, Sagem2000, CAN/AT6, EDC16C3 , MEV17.4.2)

Daewoo - (SiriusD42)

Fiat - (IAW49F, IAW5SF)

Ford - (ECU, PWM/AT, PWM/ABS, CAN/DIESEL, CAN/AT, CAN/TPMS, CAN/ABS )

Geely - (MT20U, MT20U2, M797)

GM/Chevrolet/Pontiac - (ECU, AT, ABS, SiriusD42)

GreatWall - (MT20U2, EOBD, CAN/4D20)

Honda - (Fit, Accord, CRV/DIESEL, Insight)

Jeep - (ECU, DIESEL, AT, TPMS)

KIA, Hyundai -~15 PIDs for each model(ATF Temperature,

Knock detected and etc)

Land Rover - (RANGE/3.6L, DISC4/3.0L, DISC3/TD6, FL2/TD4)

Lifan - (MT20U, MT20U2, ActecoME797, ME1788, ABS)

Mazda - (ECU, AT, ABS, CAN/TPMS, CAN/SWA)

Mercedes - (W203/CDI, W169/CVT, W168)

Mitsubishi - (CAN/ECU, CAN/CVT, CAN/SS4II, CAN/AWC, MUT/OBD, MUT/GDI)

(Note: Mitsubishi models manufactured before ~2000 don't support OBD protocols

and won't work with ELM327)

Nissan - (CAN/ECU, CAN/CVT, CAN/AWD, CAN/METER, CONSULT2)

Opel - (ECU, AT, ABS, X18XE, Z16XE, Y17DT, CDTI1.6L, CDTI1.3L)

Peugeot - (MEV17.4.2, EDC16C3, ME744, AL4/CAN, AL4/KWP)

Renault - (CAN/ECU, CAN/DIESEL, KWP/DIESEL, Sagem2000, KWP/EMS3132)

Skoda - (CAN UDS TSI/TFSI)

SsangYong - (KWP/ECU, KWP/AT5, D20DT, CAN/D20DTF, CAN/DSI6)

Subaru - (ECU, ECU/DIESEL, SSM2, SSM2/DIESEL, SSM2/AT, KWP/ABS)

Suzuki - (CAN/ECU, KWP/ECu)

Toyota - (CAN/ECU, KWP/ECU, Prius10,Prius20,Prius30/Alpha,Prius30/AC)

VAG - (TDI/2.5L, CAN UDS TSI/TFSI)

Volvo - (D5/P3)

VAZ - (Yanvar 7.2, Itelma VS5.1 R83, Itelma M73, Itelma M74

KWP/CAN, AT/JATCO, AMT/ZF, Vesta/Largus K4M,H4M)

GAZ - (MIKAS10.3/11.3, MIKAS11/E2)

ZAZ - (MIKAS10.3/11.3, MR140)

UAZ - (MIKAS10.3/11.3, MIKAS11/E2, M86CAN)

The supported vehicle list and parameters are continuously expanding...

Note that not all listed PIDs may be available for your specific vehicle model. Customize visible PID types in "Settings / PID types" for better usability.

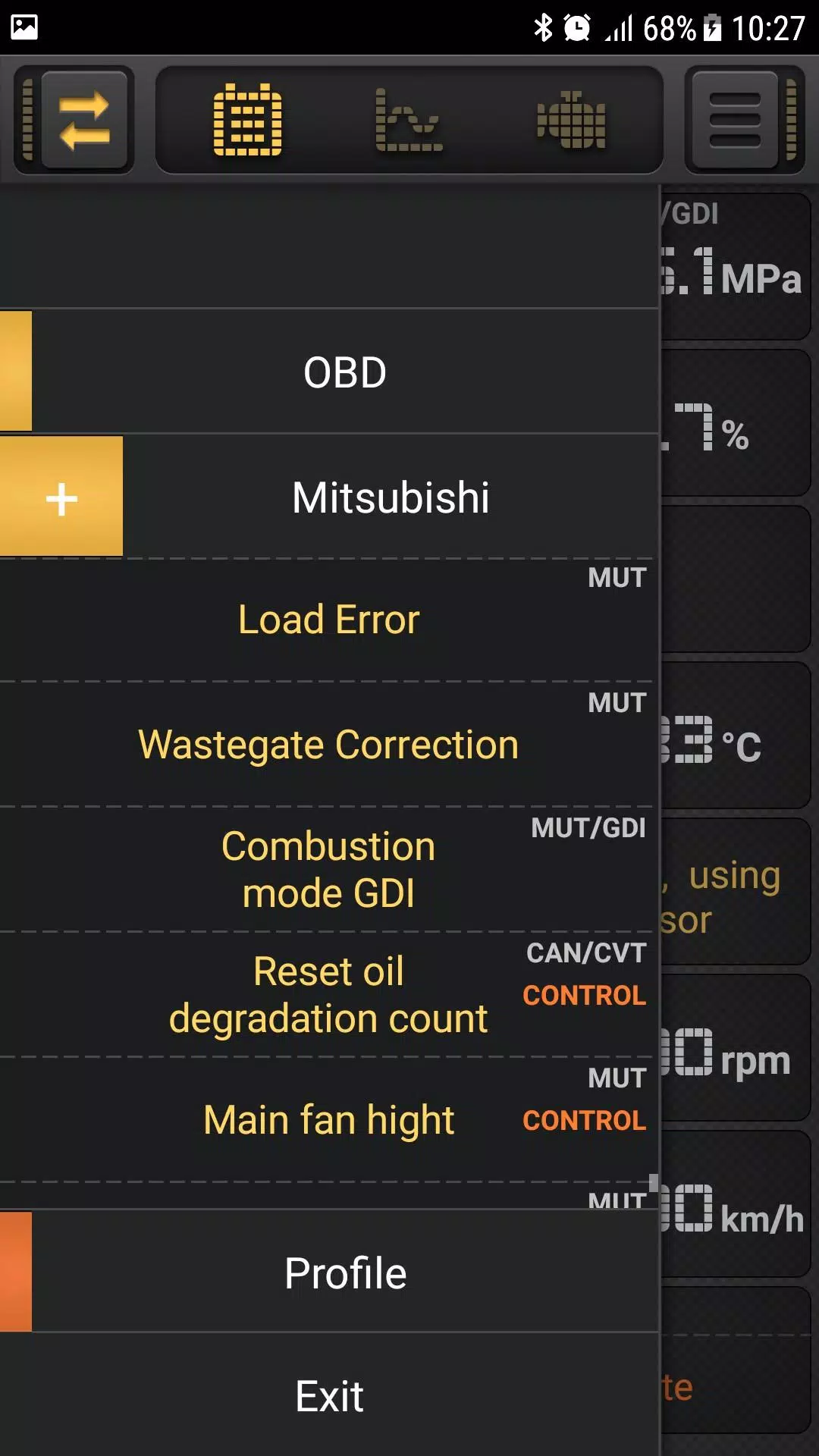

Select Mitsubishi models offer advanced control capabilities (activating cooling fans, fuel pumps, etc.)

For MUT parameter reading on Mitsubishi CAN-bus models (Montero/Pajero IV, Outlander 2, etc.), create a profile with ISO 9141-2 protocol while maintaining ISO 15765-4 CAN protocol (11bit 500K) in other profiles.

Important: Not all Mitsubishi CAN-bus vehicles support ISO 9141-2 connectivity.

The application provides extensive customization options for creating personalized diagnostic parameters.

What's New in the Latest Version 3.5.9

Last updated on Sep 30, 2024

Includes minor bug fixes and performance enhancements. Update now for optimal functionality!
